LED Emergency
Exit Sign Light Flippable frame over 3 : 1 1 : 1 Super-thin Size 3 : 1 1 : 1 Wall inlay mount 3 : 1 1 : 1 Celling inlay model 3 : 1 1 : 1
Professional manufacturer of dry powder fire extinguisher maintaining device Professional manufacturer of dry powder fire extinguisher maintaining device
gif
Prudcts>>LED Emergency Exit Sign Light>>LED Emergency Exit Sign Light
　LED on the box-type exit turn signals - 3：1 type

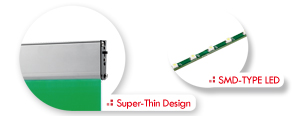

Super-Thin Design - High quality anodized aluminum alloy frame; 20-mm maximum thickness; light and elegant with attractive appearance.
  Common light Deaign - A common light for wall-hang/Ceiling-hang/Ceiling-suspend. Only installation of additional parts is required.
  Fixed Voltage switching power - Back-up power when discharged, Variation of light intensity is within 5% in 60 minutes.
  Advanced Opt guide - Same opt guide technology as the LCD show super high intensity and the average light intensity is above 80%.
  High Efficiency Ni-MH Battery - Highly efficient, long life and rechargeable for 500 times. 18-hour charging time for provision of 90-minute operation.
  Lead in the Industry - SMD-TYPE LED Automatic Process with a stable quality. Long life and energy-saving.
Alarm─ - Optional Power Outage Alarm.
※This product is recognized by the NFA of R.O.C..





◎Specification：Operating: 90V~245V
Model No. LED Spec. Ni-MH Battery Size (mm) Power Rating Energy Consumption
Small LE-A/ LD-A
Double size:LD-AD		 SMD White LED 0.07Wx18
 3.6V
600mA		 365x175x20
Signs:360x120
 Voltage 90V~245V
Current 22mA		 2.4W
Medium
 LE-A2H / LD-A2H
Double side:LD-A2DH		 SMD White LED
0.07Wx36
 3.6V
1100mA		 505x255x20
Sign:500x170
 Voltage 90V~245V
Current 36mA		 4W
Medium
 LE-A4H / LD-A4H
Double side:LD-A4DH		 SMD White LED
0.07W x 42
 3.6V
2300mA		 605x255x20
Sign:1000x200
 Voltage 90V~245V
Current 41mA		 4.5W
Large
 LE-A3/ LD-A3
Double side:LD-A3D		 SMD White LED
0.07W x 36 x 2
 3.6V
2200mA		 1005x255x20
Sign:1000x200
 Voltage 90V~245V
Current 81mA		 8.9W
