Prudcts>>LED Emergency Exit Sign Light>>LED Emergency Exit Sign Light
　Celling inlay model - 3：1 type

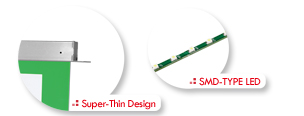

Super-Thin Design - High quality anodized aluminum alloy frame; 20-mm maximum thickness; light and elegant with attractive appearance.
  Common light Deaign - A common light for wall-hang/Ceiling-hang/Ceiling-suspend. Only installation of additional parts is required.
  Fixed Voltage switching power - Back-up power when discharged, Variation of light intensity is within 5% in 60 minutes.
  Advanced Opt guide - Same opt guide technology as the LCD show super high intensity and the average light intensity is above 80%.
  High Efficiency Ni-MH Battery - Highly efficient, long life and rechargeable for 500 times. 18-hour charging time for provision of 90-minute operation.
  Lead in the Industry - SMD-TYPE LED Automatic Process with a stable quality. Long life and energy-saving.
Alarm─ - Optional Power Outage Alarm.
※This product is recognized by the NFA of R.O.C..







◎Specification：Operating: 90V~245V
Model No. LED Spec. Ni-MH Battery Size (mm) Power Rating Energy Consumption
Small LE-A/LD-A
Double size:LD-AD		 SMD White LED 2.4W
 4.8V
800mA		 365x170x20
Signs:360x120
 Voltage 90V~245V
Current 73mA		 4.7W
Medium
 LE-A2/LD-A2
Double side:LD-A2D		 SMD White LED
4.8W
 4.8V
1600mA		 505x220x20
Sign:500x170
 Voltage 90V~245V
Current 115mA		 7W
Large
 LE-A3/LD-A3
Double side:LD-A3D		 SMD White LED
4.8W*2
 4.8V 1600mA x 2 1005x250x20
Sign:1000x200
 Voltage 90V~245V
Current 224mA		 15.3W
