Prudcts>>LED Emergency Light>>Energy-Saving LED Emergency Light
 Energy-Saving LED Emergency Light


LED緊急照明燈

Super-Thin Design-40mm maximum thickness and less than 28mm of the inlay thickness; light and elegant with attractive appearance; safe and convenient for use.
  Public Exposure Design-A common light head for wall-hang/Ceiling-hang/Inlay Mount. Only installation of additional partsis required. Easy installation and parts matching appearance.

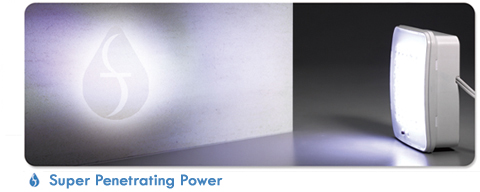

  Super Penetrating Power-At a perpendicular distance of 1.5M, 70 Lux of illumination under a power consumption of 1.62W; 1.08W power consumption corresponds to 50 Lux illumination.
  High Efficiency Ni-MH Battery-Highly efficient, long life and rechargeable for 500 times. 18-hour charging time for provision of 90-minute operation.

※This product is recognized by the NFA of R.O.C..

◎Specification:Operating: 90V~245V
Model No. Model LED Spec. Ni-MH Battery Charge/Discharge Time Exterior Size (mm)
LL-W-A Wall Hang SMD White LED*36
2.52W

3.6V 600mA 48 Hours/
More than 90 minutes

109x109x40
LL-W-A-S
Wall Hang(Recessed) SMD White LED*36
2.52W
3.6V 600mA 48 Hours/
More than 90 minutes
149x165x40
LL-W-A-C
Ceiling Inlay Mount SMD White LED*36
2.52W
3.6V 600mA 48 Hours/
More than 90 minutes
ψ175x40
LL-W-B Wall Hang SMD White LED*24
1.68W

3.6V 600mA 48 Hours/
More than 90 minutes

109x109x40
LL-W-B-S
Wall Hang(Recessed) SMD White LED*24
1.68W
3.6V 600mA 48 Hours/
More than 90 minutes
149x165x40
LL-W-B-C
Ceiling Inlay Mount SMD White LED*24
1.68W
3.6V 600mA 48 Hours/
More than 90 minutes
ψ175x40
